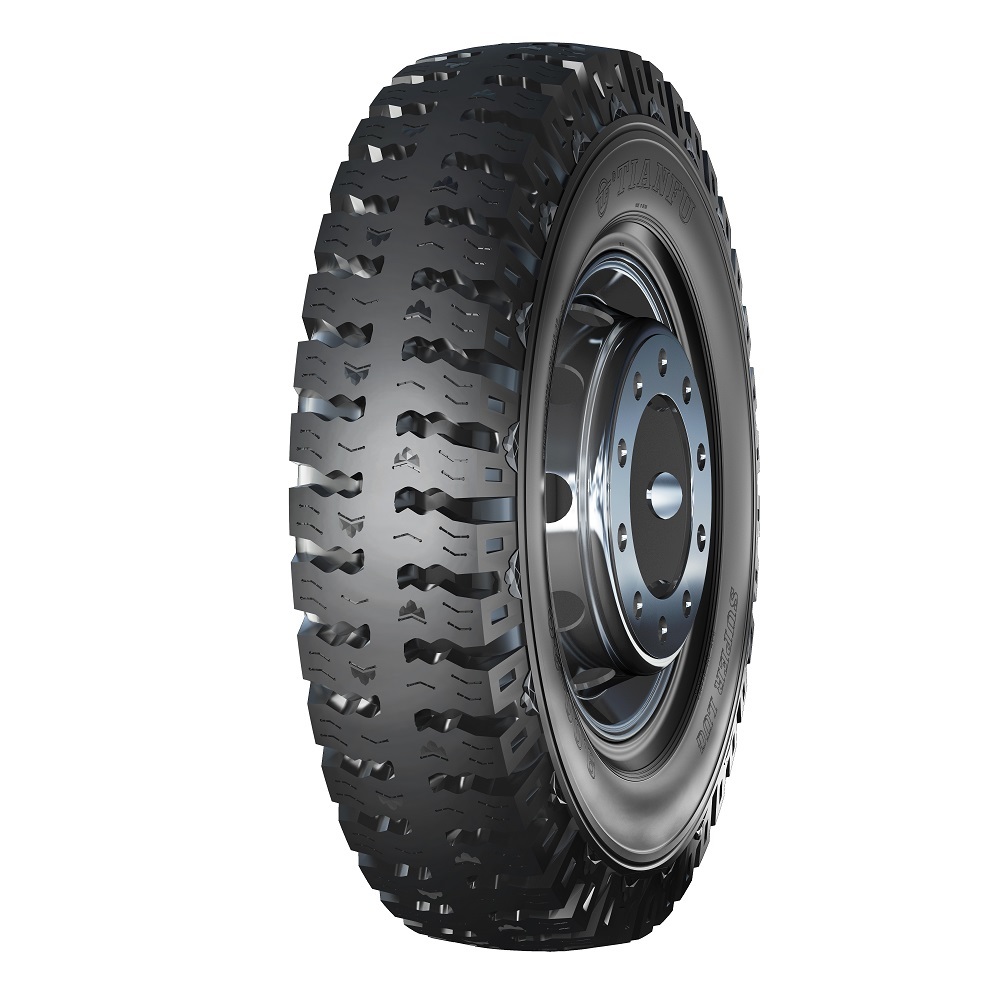

TIANFU SUPER LUG
TIANFU SUPER LUG excavator tires are designed for low-speed short-distance operations in mining and harsh road conditions. They feature strong load capacity and excellent wear resistance, suitable for all wheel positions. Explore our full range including sizes 9.00-20, 10.00-20, and 11.00-20 with detailed technical specifications. Perfect for excavators and heavy construction machinery in extreme working environments.
Excavator Tires
TIANFU SUPER LUG Series
Product Performance Introduction
Main Features
- Low speed and short distance
- Excavator specialized tires
- Suitable for mining and harsh road conditions
- All wheel position application
Product Advantages
Strong load capacity Excellent wear resistance
TIANFU SUPER LUG excavator tires are specially designed to deliver exceptional performance and long service life under extreme working conditions.
SUPER LUG Technical Parameters
| Tire Size | Ply Rating | Load Index | Speed Symbol | Rim Measuring | Rim Permitted | Tread Depth (mm) | Section Width (mm) | Overall Diameter (mm) | Max. Load (kg) | At Cold Pressure (kPa) | kgf/cm² |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.00-20 | 20 | 150/145 | A8 | 7.0 | 6.50T, 7.5 6.5, 7.50V | 22 | 259 | 1038 | S 3350 D 2900 |
S 940 D 910 |
S 9.4 D 9.1 |
| 10.00-20 | 20 | 153/148 | A8 | 7.5 | 7.50V, 8.0 | 22 | 278 | 1073 | S 3650 D 3150 |
S 960 D 890 |
S 9.6 D 8.9 |
| 11.00-20 | 20 | 154/150 | A8 | 8.0 | 8.00V, 8.5 | 22 | 293 | 1105 | S 3750 D 3350 |
S 960 D 890 |
S 9.6 D 8.9 |
NEW
Application Areas
Suitable Scenarios
- Open-pit mining operations
- Large earthworks projects
- Infrastructure construction
- Harsh road conditions at construction sites
Equipment Matching
- Medium to large excavators
- Mining specialized equipment
- Heavy construction machinery
- Vehicles for harsh working conditions
